Description (100 words)

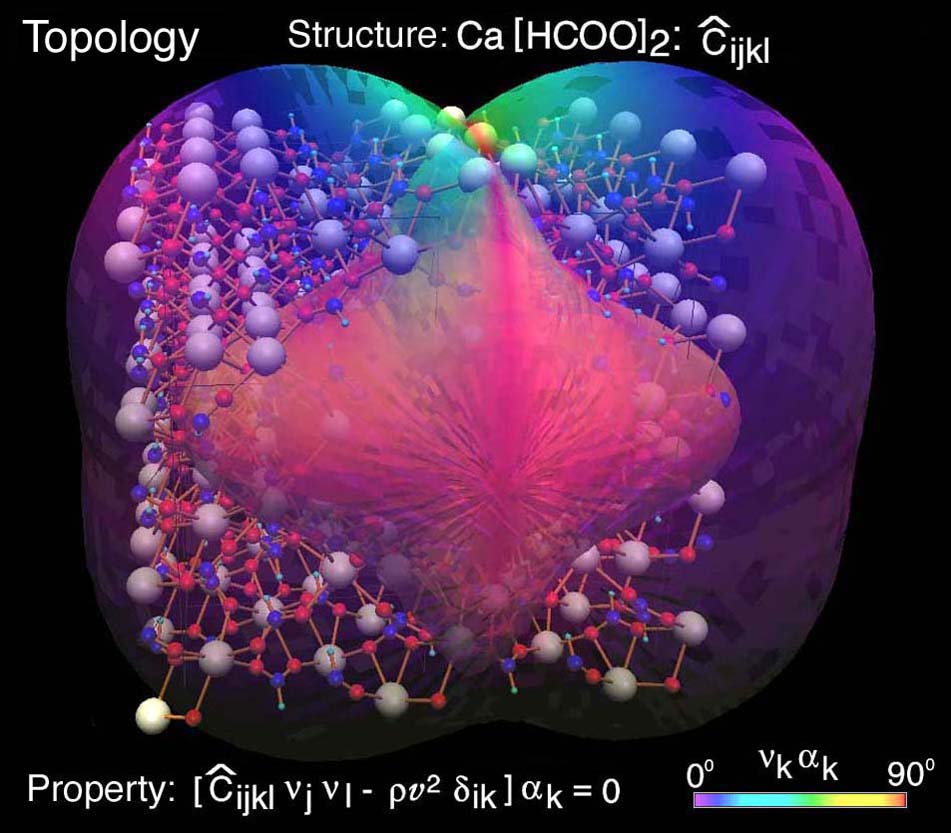

Recent development of networked collaborative immersive software [1-3] allows more accurate visual analysis of complex connected wave-velocity surfaces propagating through anisotropic crystals. Existing topologies, used for sub-classification within orthorhombic symmetry [4-6], were studied using these immersive tools. From Christoffel's equation the fourth order elastic stiffness tensor, Cijkl, uniquely defines these topologies where the collection of all wave speeds, v, (topology) and their vibration directions, αk, correspond to the wave propagation direction, νk, and color is defined by αk νk . Together both topology and color uniquely represent Cijkl for Ca[HCOO]2. Insight occurs when the observer is "immersed" inside this crystal (nano-structure) and the wave velocity (macro-property) topology. Polar covalent bond orientations are seen to align along stiffer directions where faster longitudinal wave speeds appear as purple bulges.

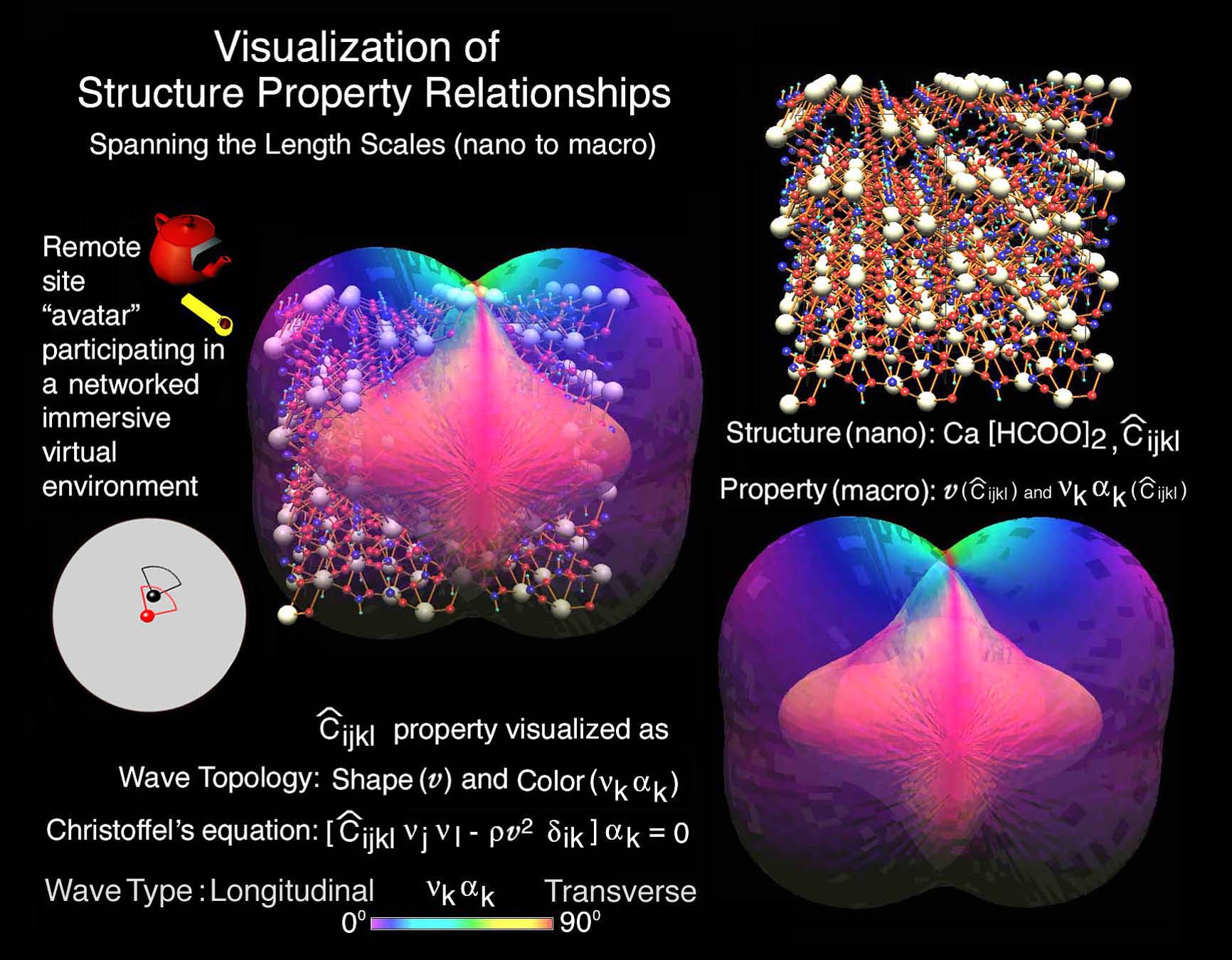

Figure 1b. Description of Nano-Macro Topology for Ca[HCOO]2 (landscape)/ (300dpi)
